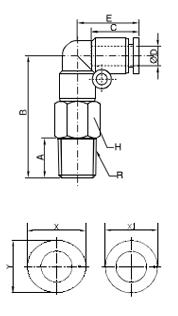

| 型號Model | ?D | Rc | A | B | E | H | X | Y | X1 | C |
| PLL4-M5 | 4 | M5 | 3.5 | 31 | 18 | 10 | 11.8 | 10.5 | 10.4 | 14.3 |
| PLL4-01 | 4 | 1/8 | 7 | 35 | 18 | 10 | 11.8 | 10.5 | 10.4 | 14.3 |
| PLL4-02 | 4 | 1/4 | 9 | 37 | 18 | 14 | 11.8 | 10.5 | 10.4 | 14.3 |
| PLL6-M5 | 6 | M5 | 3.5 | 32.8 | 18 | 12 | 13.8 | 12.5 | 12.3 | 15 |
| PLL6-01 | 6 | 1/8 | 7 | 36.8 | 18 | 12 | 13.8 | 12.5 | 12.3 | 15 |
| PLL6-02 | 6 | 1/4 | 9 | 38.5 | 18 | 14 | 13.8 | 12.5 | 12.3 | 15 |
| PLL6-03 | 6 | 3/8 | 10 | 40.8 | 18 | 17 | 13.8 | 12.5 | 12.3 | 15 |
| PLL6-04 | 6 | 1/2 | 13 | 42.8 | 18 | 21 | 13.8 | 12.5 | 12.3 | 15 |
| PLL8-01 | 8 | 1/8 | 7 | 41.5 | 22.5 | 14 | 15.8 | 13.9 | 13.7 | 16.8 |
| PLL8-02 | 8 | 1/4 | 9 | 45.5 | 22.5 | 14 | 15.8 | 13.9 | 13.7 | 16.8 |
| PLL8-03 | 8 | 3/8 | 10 | 46.5 | 22.5 | 17 | 15.8 | 13.9 | 13.7 | 16.8 |
| PLL8-04 | 8 | 1/2 | 13 | 50.5 | 22.5 | 21 | 15.8 | 13.9 | 13.7 | 16.8 |
| PLL10-01 | 10 | 1/8 | 7 | 47.5 | 23.5 | 17 | 19.4 | 17 | 16.8 | 19.3 |
| PLL10-02 | 10 | 1/4 | 9 | 49.5 | 23.5 | 17 | 19.4 | 17 | 16.8 | 19.3 |
| PLL10-O3 | 10 | 3/8 | 10 | 50.5 | 23.5 | 17 | 19.4 | 17 | 16.8 | 19.3 |
| PLL10-O4 | 10 | 1/2 | 13 | 53.5 | 23.5 | 21 | 19.4 | 17 | 16.8 | 19.3 |
| PLL12-01 | 12 | 1/8 | 7 | 57.5 | 28 | 21 | 22.7 | 20.3 | 19.5 | 22.3 |
| PLL12-02 | 12 | 1/4 | 9 | 58.4 | 28 | 21 | 22.7 | 20.3 | 19.5 | 22.3 |
| PLL12-03 | 12 | 3/8 | 10 | 58.4 | 28 | 21 | 22.7 | 20.3 | 19.5 | 22.3 |
| PLL12-O4 | 12 | 1/2 | 13 | 59 | 28 | 21 | 22.7 | 20.3 | 19.5 | 22.3 |
| PLL16-O3 | 16 | 3/8 | 10 | 62.5 | 33 | 24 | 26.7 | 24 | 24 | 23.8 |
| PLL16-04 | 16 | 1/2 | 13 | 64.5 | 33 | 24 | 26.7 | 24 | 24 | 23.8 |
